Garmin ECHOMAP™ Ultra 2 >>>12"Chartplotter<<

Garmin ECHOMAP™ Ultra 2 12” sv Chartplotter/Fishfinder Combo:

• 122sv without Transducer; Includes Garmin Worldwide Basemap (Garmin 010-02881-00)

  OR

• 126sv without Transducer; Includes Garmin Navionics+^™ U.S. Inland & Coastal Mapping (Garmin 010-02882-00)

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping.

Features:

• ECHOMAP™ Ultra 2 126sv with Garmin Navionics+™

• 12” touchscreen

• Supports livescope™ sonar, and more

• Wirelessly network; share sonar, waypoints, and routes.

• Capture screen recordings to share fish catches

• Multi-band GPS for improved position accuracy

Livescope™ Sonar Support

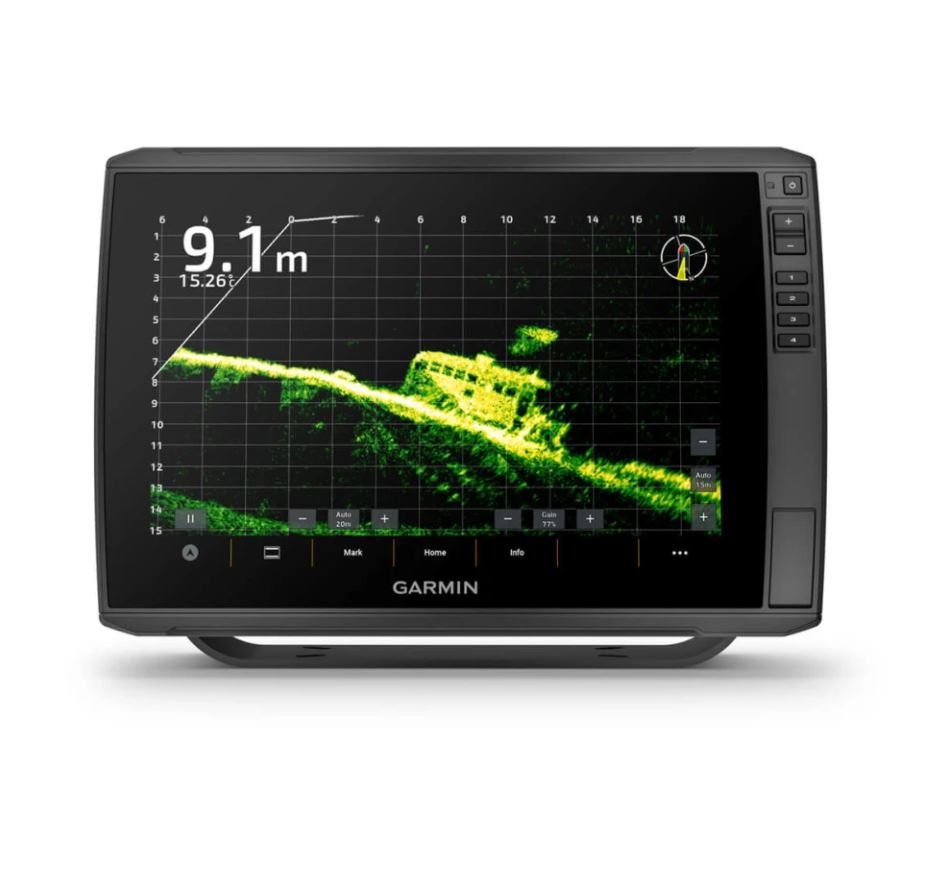

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

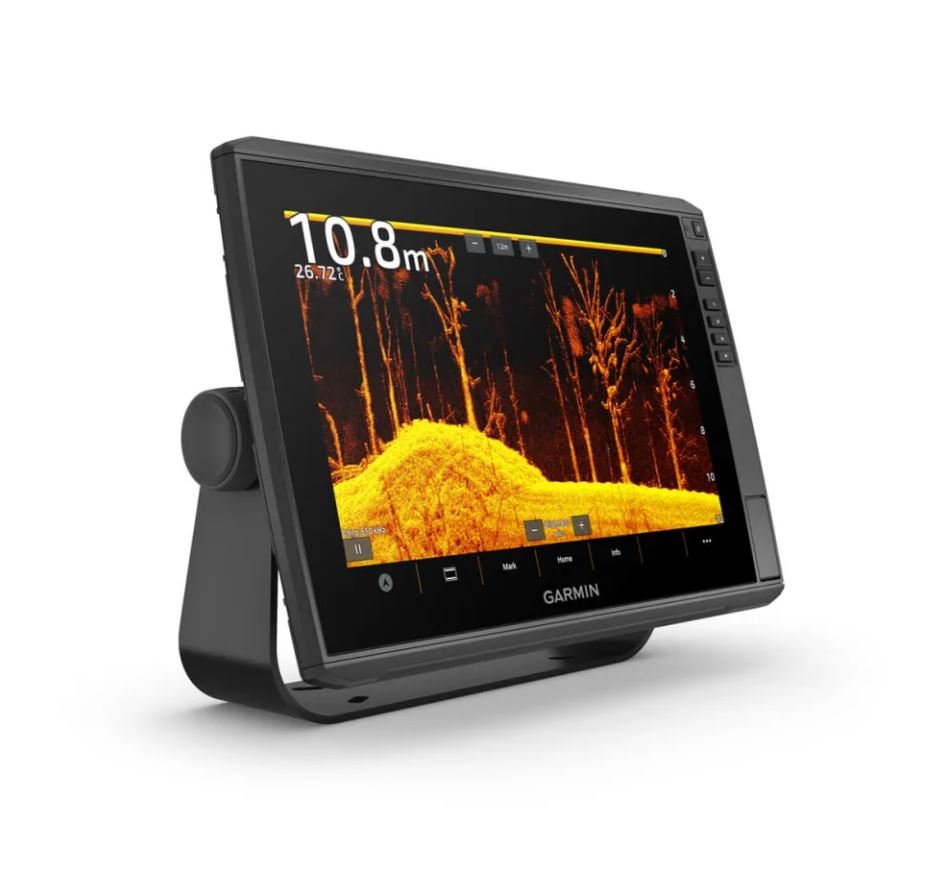

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Preloaded Charts

Experience unparalleled coverage and detail with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000® Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

ActiveCaptain® App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

Force® Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

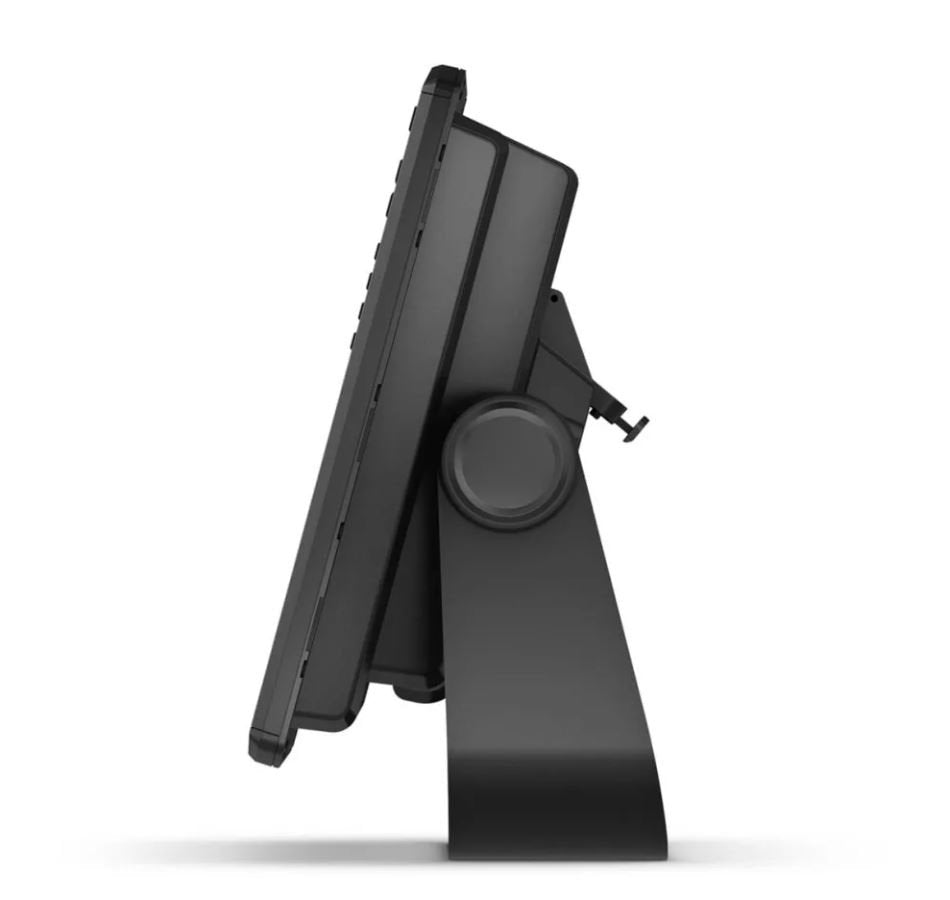

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 126sv with optional Garmin Navionics+

• Power/data cable

• Bail mount with quick-release cradle

• Protective sun cover

• 8-pin transducer to 12-pin sounder adapter cable

• Hardware

• Documentation

Specifications

General:

• Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)

• Weight: 5.5 lbs (2.5 kg)

• Waterproof: IPX7

• Touchscreen: Yes

• Display Type: WXGA, IPS

• Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)

• Display Resolution: 1280 x 800 pixels

• Mounting Options: Bail or flush

• Input: Touchscreen with Keyed Assist

Maps & Memory:

• Accepts Data Cards: 2 microSD cards

• Waypoints: 5000

• Track Points: 50,000

• Tracks: 50 saved tracks

• Navigation Routes: 100

Sensors:

• GPS: Yes

• GLONASS: Yes

• Galileo: Yes

• BeiDou: Yes

• Has Built-In Receiver: Yes

• Receiver: 10 Hz

• NMEA 2000 Compatible: Yes

• NMEA 0183 Compatible: Yes

• Supports WAAS: Yes

• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes

• Garmin Navionics+ Inland & Coastal: Yes (see Additional)

• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+™: Yes

• Garmin Navionics+ Vision+™: Yes

• TOPO 100k: Yes

• Standard Mapping: Yes

• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes

• DSC: Yes

• Supports Fusion-Link™ Compatible Radios: Yes

• ActiveCaptain® Compatible: Yes

• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC

• Typical Current Draw at 12 VDC: 2.5 A

• Maximum Current Draw at 12 VDC: 5.0 A

• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes

• Power Output: 600 W

• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)

• ClearVü: Built-in 260/455/800/1000/1200 kHz

• SideVü: Built-in 260/455/800/1000/1200 kHz

• Panoptix™ Sonar: Yes

• Livescope: Yes

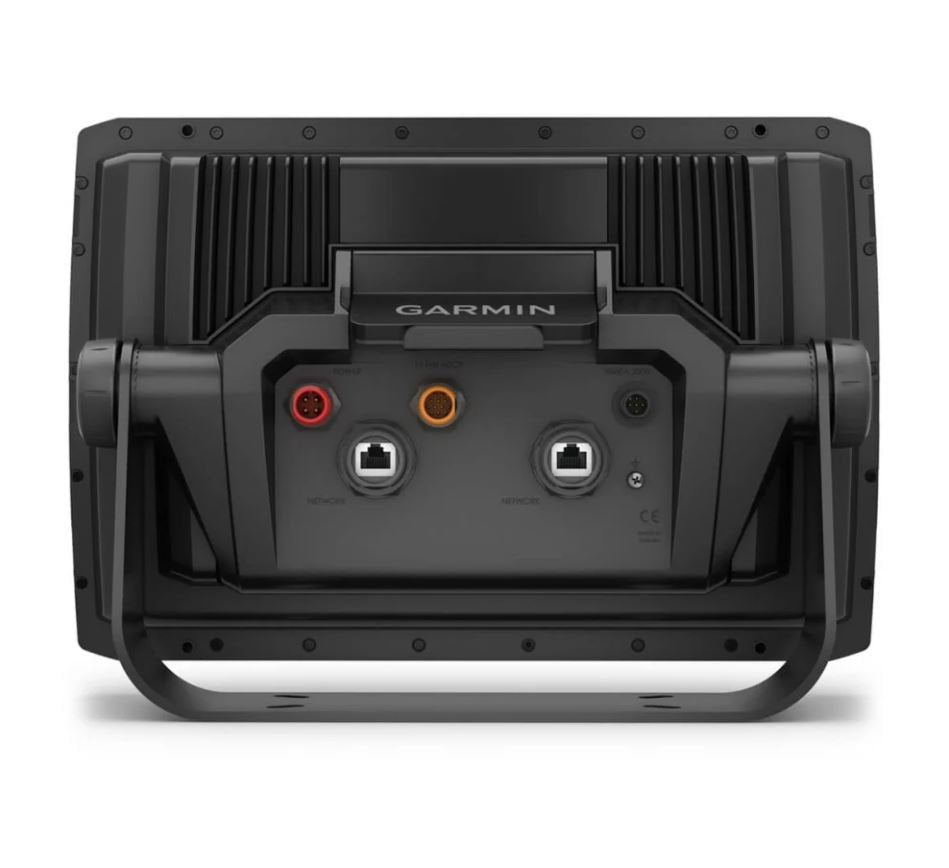

Connections:

• NMEA 2000® Ports: 1

• Garmin Marine Network Ports: 2 (Large Connector)

• 12-Pin Transducer Ports: 12-Pin Scanning Sonar

• ANT+ (Connectivity): Yes

• Garmin Wi-Fi Network (Local Connection): Yes
